适用车型 Apply to ：	华菱转向助力油缸接头-CAMC Hualing cylinder rod end
规格 Size ：	M22*m25.8/29.4
颜色 Color ：	Electrophoresis Black
包装规格 Packaging ：	20PCs/CTN

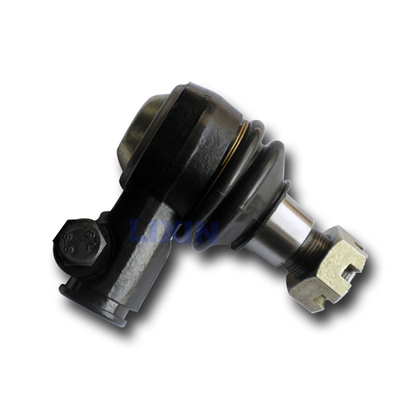

类型 Item ：	一次性球头 Disposable tie rod end
球头材质 Ball Stud Material ：	40Cr/DIN41Cr4/AISI/SAE5140
球壳材质 Housing Material ：	C45/DINC45/AISI/SAE1045

产品详情

More Details:

1. Housing: Material AISISAE 1045/DIN C45/ASTM A194-2H.

Hardness reaches to HB179 - 217 after Quenching and High Temperature Tempering.

tie rod end use for Isuzu pick up truck NQR OE No. 8972225100/8972225090 hot sale to Russia

2. Ball Stud: Material AISISAE 5140/DIN 41Cr4.

Overall Quenched and tempered, polishing again after overall high frequency quenching treatment.

Hardness of Spherical Surface: HRC56 - 63.

tie rod end use for Isuzu pick up truck NQR OE No. 8972225100/8972225090 hot sale to Russia
